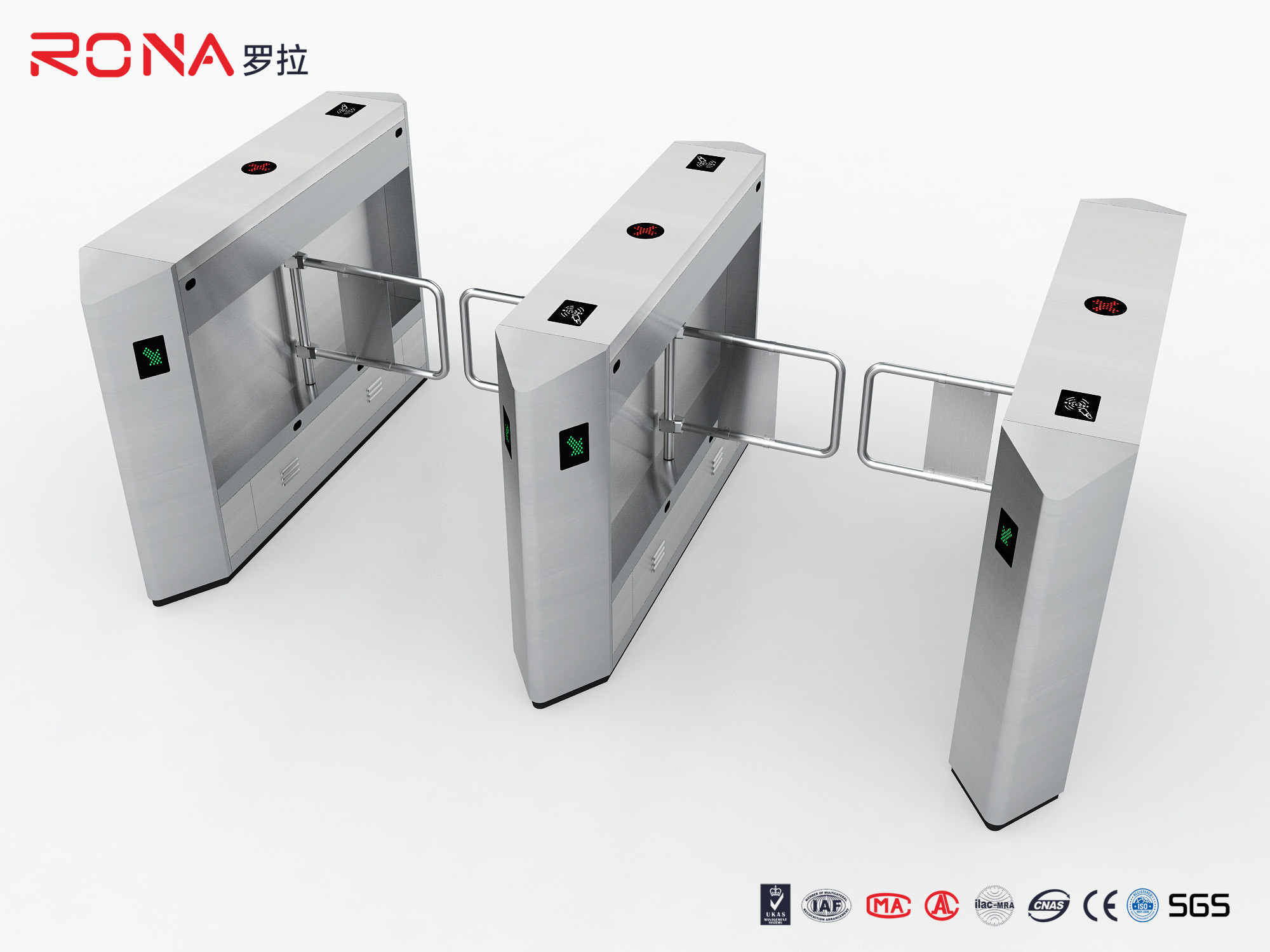

Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm

Name: Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm
Brand: RONA
Price: 1 USD

China Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm wholesale

Brand Name : RONA

Model Number : RNCF 5008/5008S

Certification : CE / ISO9001

Place of Origin : China

MOQ : 1 pair

Price : negotiation

Payment Terms : L/C, T/T,, Western Union

Supply Ability : 2000 units Per Month

Delivery Time : 7-15 working days

Packaging Details : Export Wooden Packing

Product name : Outdoor SUS304 Swing Barrier Gate Waterproof Turnstile With Acrylic Arm

Standard size : L1200mm*W280mm*H990mm

Driving motor : DC24V brushless motor

Channel width : 550~1200mm

Material swing : SUS304 or Acrylic

Pass speed : 25-30 persons/min

IP : 54

Working environment : -30℃～70℃

Environment : Indoor or outdoor

Working life : 5 millions

Input interface : +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Guarantee : 12 Months

Contact Now

Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm

Outdoor SUS304 Swing Barrier Gate Waterproof Turnstile With Acrylic Arm

Prduct Decribetion

1)With automatic homing, power-off unlock, power-on self-test, zero point correction, memory access, multiple opening, etc.
2)Material: Made of high-precision SUS304 stainless steel foot and thick plate material, corrosion resistance, wear resistance, high temperature resistance, oxidation resistance, durable, and after years of use, it is still as bright as new and always beautiful.
3)Structure: Modular design, easy disassembly, easy inspection, easy repair, easy installation and maintenance.

4)Alarm function: illegal break-in, reverse traffic, trailing, traffic timeout, and equipment alarm when the situation occurs;
5)Stable product performance, low energy consumption, low noise and long service life;
6)Super five-proof function: with anti-trailing, anti-reverse, anti-hand shake, anti-collision, anti-pinching; super protection, safer traffic;

Integrating mechanism, electronics and micro-processor advanced technologies.The swing turnstile is a improvement of intelligent tripod turnstiles.Equip various card-reading machines with hi-performance security protection SW to realize real-time warning and clever LED counter display guide passers .it balance pedestrian intelligent control and management.

Swing barrier gates Standard features & functions

1) With function of self-examine and alarm, it is convenient for maintenance and use.

2) Being able to program running status by the small keyboard in the main board

3) Preventing pedestrians from being nipped and from hurt

4) Light and sound alarm funtion including the illegal in and the tail

5) Arms are automatically locked untill opening signal is received.

6) Arms synchronization (adjustable)

7) Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the

8)channel in the pre-set time after the opening. The passing time is adjustable

9) Automatically open the gate when power off and automatically close when power on

10) Several card readers are attachable, and relay singals can be received.

11) One direction or bi-direction are optional

12) It can be directly controlled and managed by remote control.

13) Count functions

14) Length of framework and material of arm are optional.

Standard Technical Paramenters

housing material	SUS304 stainless steel
Dimension	L1200W280H990 (mm)
Net weight	75Kg/unit
Working mode	single or bi-direction
Power supply	AC220/110 ±10% V 50 ±10% Hz
Motor Voltage	DC 24V brushless motor
Input interface	Dry contact signal/12V level signal/12V pulse signal
Communication interface	RS232 (Distance less than 1200M)
Transit speed	30-35 persons/min (normal open), 25-30 persons/min (normal close)
Opening/closing time	2 sec
Transit time after power on	3 sec
Auto reset time	10 sec
Working environment	inside/outside (with shed)
Temperature	-10Ces-50Cels
Relative humidity	≤90%, no condensation

Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm

Package for turnstiles gate
