Half Height Turnstile for Security Solution Quality Assured

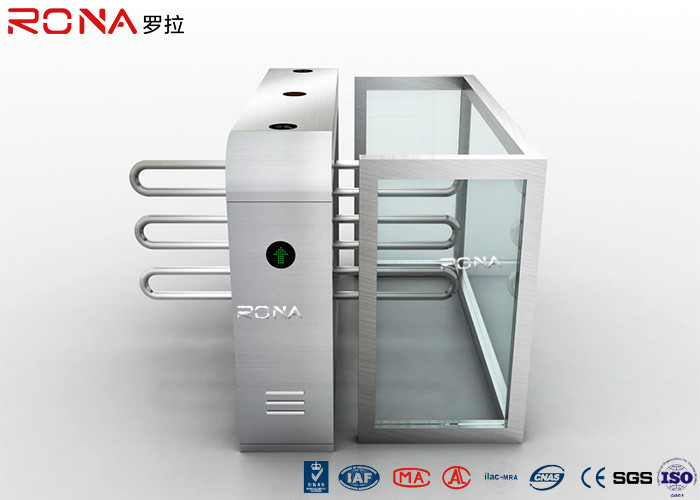

Model: RNCF10238-3 Half Height Turnstile
RNCF10238-3 is a type of outdoor/indoor half height turnstile with metal wings
and classic glass type design. Wings’ design may be straight as
well as U-shaped. The range of modifications includes three and
four wing types as well as different type of metal finishing.
Turnstile working condition is adjustable by setting the button on
main control board.
Turnstile use secondly mechanism with shock absorption device and
Turnstile with 60°anti-reverse function.
Anti-collision avoidance function: Before received the open signal,
the turnstile will lock automatically.
When out of power, turnstile will open the gates automatically to
the request the fire alarm.
Automatic Reset Functions: after you swap the card, during the
specific time(the system default is 10s),System will reset in1~60s
when powered off, turnstile will open automatically, powered on
turnstile will close automatically.
Big direction arrow plate to show passage condition.
Turnstile with swiping card memory function.
Through the management computer to realize remote control and
|Housing Material||304 stainless steel|
|Drive motor||DC 24V brush motor|
|Pass Direction||one or bi-directional|
|Arm Driving Force||1kg|
|LED Light||direction indication|
|Working mechanism||24V solenoid valve(German Technology)|
|Working Environment||Indoor and Outdoor|
|Normal Running Life||More than 5million|
|Card Reader area||holder|
|Reset time after break down||RS485|
|Input interface||12V pulse signal with pulse width >100ms, drive current >10mA|
- Nonstandard Program customized.
- LED Counting function.
- Turnstile shape size can do customized.
- Voice Prompt Function.
